Wheeled vs Crawler Mobile Crusher: Which Is Better for Your Project?
In the mining and aggregate industry, cost reduction and efficiency improvement are always the primary concerns. Mobile crushers are gradually replacing stationary crushing plants, but which should you choose: wheeled or tracked? This article will explain the differences between the two in the simplest and clearest way, helping you select the most suitable crusher and avoid wasting money.
What's the biggest difference between them?
Actually, both wheeled and tracked mobile crushers do the same job: crushing rock, boulders, or construction waste on-site. The real difference lies in their mobility, work locations, and your budget.

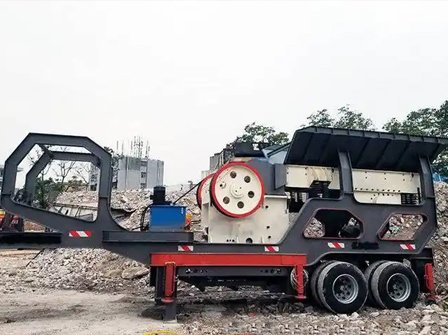

Wheeled Mobile Crusher
It’s mounted on a tire chassis and towed over long distances by a semi-trailer or tractor. It’s very flexible on flat, hard ground—such as concrete yards, paving sites, or urban construction sites. You can move it quickly between work locations, and it’s easy to operate with minimal setup.
Tracked Mobile Crusher
It uses a hydraulic tracked chassis, so it can move autonomously for short distances (without towing) and handles mud, slopes, or rough terrain with ease, like a tank. Due to its low ground pressure, it won’t sink into loose soil, making it ideal for remote mining areas or quarries.
Wheeled vs. Tracked: Which is right for your project?
Let’s get straight to the point. Here’s a comparison of them in several aspects that matter most to you.
| Factor | Wheeled Mobile Crusher | Crawler Mobile Crusher |
|---|---|---|
| Terrain Adaptability | Best for flat, paved, or hard-packed ground (concrete yards, urban sites, highways). Struggles with mud, slopes, or unimproved land. | Conquers rough, muddy, sloped, or remote terrain (mines, quarries, wetlands, mountainous areas). No problem with soft ground or steep slopes (up to 30°). |
| Mobility & Relocation | Long-distance transport via tractor/semi-trailer (fast on roads). On-site, needs external help to move. | Self-driven on-site (360° 原地转向); long-distance transport via truck. More flexible for frequent on-site moves. |
| Upfront Cost | Lower investment (better for budget projects or short-term jobs). | Higher initial cost (more complex undercarriage and systems). |
| Maintenance | Simple design—tires are easy to replace, fewer parts to maintain. | Track systems need regular inspection; more complex hydraulics, but durable in harsh conditions. |
| Best For | Urban construction, road projects, 建筑垃圾处理，short-distance moves, fixed-quarry supplementary crushing. | Remote mining, large quarries, frequent on-site relocation, rough or unstable ground. |
When to Pick Wheeled?
If your project is in a city, on a highway, or a well-maintained quarry yard, a wheeled mobile crusher is your best bet. Here’s why:
Fast transport: Tow it from site to site on public roads (no special permits needed).
Budget-friendly: Lower purchase cost and simpler maintenance mean less stress for small to medium projects.
Easy setup: Get up and running in hours—no complex site preparation required.
Chunlei Wheeled Mobile Crusher Recommendation
For most wheeled projects, our CL-W Series is a top choice. It’s built for reliability and flexibility, with parameters tailored to real-world needs:
Feed Size: Up to 500mm (handles most raw materials without pre-crushing)
Capacity: 50–200 TPH (matches small to medium quarry or construction site output)
Discharge Size: 0–80mm (adjustable for sand, aggregates, or crushed stone)
Power: 75–200kW (energy-efficient, with options for electric or diesel drive)
Key Feature: Quick-change chassis for easy transport; compatible with jaw, impact, or cone crushers for flexible configuration.
When to Pick Crawler?
If you’re working in a remote mine, on a muddy hillside, or need to move frequently within a large quarry, a crawler mobile crusher is worth the investment. Here’s why:
All-terrain ready: No need for paved roads—go where wheeled models can’t.
On-site agility: Move, reposition, and start crushing fast without extra equipment.
Long-term durability: Built for heavy, continuous use in harsh conditions (mines, open-pit operations).
Chunlei Crawler Mobile Crusher Recommendation
For tough, remote jobs, our CL-C Series crawler mobile crusher stands out. It’s engineered to handle the worst conditions, with specs that deliver performance:
Feed Size: Up to 700mm (handles large boulders common in mining)
Capacity: 100–500 TPH (high-output for large quarries or mining projects)
Discharge Size: 0–100mm (fully adjustable via hydraulic system for precise control)
Power: 132–315kW (heavy-duty, with oil-electric dual drive for remote areas)
Key Feature: 360° on-site mobility; low ground pressure to avoid sinking; PLC control for easy operation.
How to Choose a Mobile Crusher?
Based on years of experience, Chunlei Machinery offers the following suggestions for selecting a mobile crusher:
1. If you are in the following situations, choose the wheeled type without hesitation:
Budget: High cash flow pressure, want low-cost and quick start-up.
Site: The working surface is hardened cement or compacted mud, very flat.
Transportation: Frequent long-distance transportation between construction sites in different cities is required.
2. If you are in the following situations, choose the tracked type:
Terrain: Mining roads are full of gravel, uneven, or have slopes of more than 15 degrees.
Environmental Protection: Requires continuous operation in rainy seasons or muddy environments (tracked crushers have low ground pressure and are less prone to getting stuck).
Manpower: On-site lifting equipment (cranes) is scarce; tracked crushers can move on their own, eliminating the need for cranes.
Efficiency: Seeking the ultimate speed of relocation; as soon as an excavator digs out the material, the tracked crusher immediately drives over and crushs it on-site.
Why Choose Chunlei Machinery?
Whether you choose wheeled or tracked equipment, the core factor is equipment quality.
Zhengzhou Chunlei Machinery Manufacturing Co., Ltd. has focused on mining equipment for decades. We not only sell equipment, but also provide “customized solutions”:
- Non-standard customization: For different stone hardness levels, our wheeled and tracked chassis can be equipped with various main crushers such as jaw crushers, impact crushers, and cone crushers.
- Original parts: Chunlei equipment uses high-manganese steel cast wear-resistant parts for longer service life.
- Service response: We have a professional engineering team that can provide on-site installation and commissioning guidance, and supply original wear parts.
Get a Free Custom Recommendation
Tell us:
- What material are you crushing (limestone, granite, construction waste)?
- What’s your required capacity (TPH)?
- What’s your job site like (flat urban, remote mine, muddy slope)?
Contact Us Today
WhatsApp: +86 15238371776
